> UV LAMP제품 > 초고압램프
| Type | Related Characteristic | Average Brightness (cd/cm2) |
Total Luminous Flux (lm) |
Burning Position |
Dimensions | Remark | |||
|---|---|---|---|---|---|---|---|---|---|
| Power (W) | Voltage (V) | Current (A) | L 1 (mm) |
L 2 (mm) |
|||||

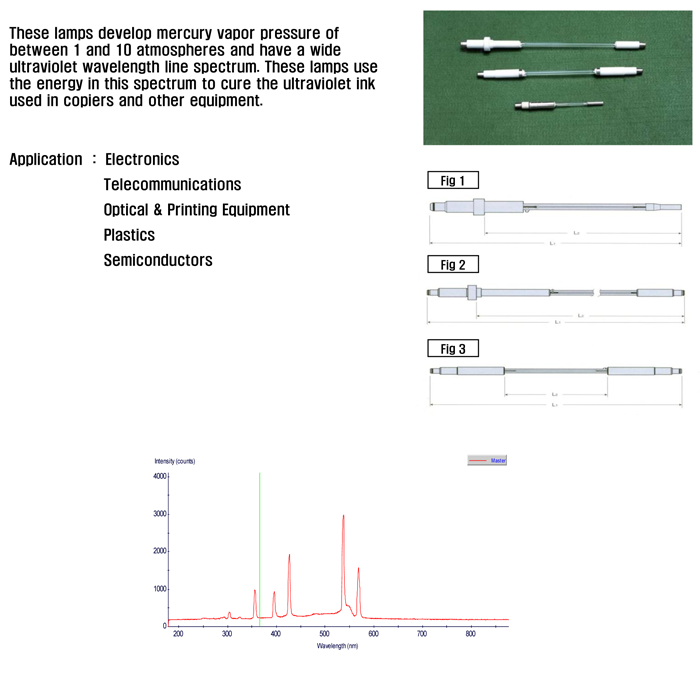

| KJSL3000 C | 3000 | 1770 | 1.7 | 35,000 | 195,000 | Horizontal | 183 | 145 | Fig 1 |
| KJSL 4000 | 4000 | 2360 | 1.7 | 35,000 | 260,000 | Horizontal | 288 | 242 | Fig 2 |
| KJSL 5000 | 5000 | 2950 | 1.7 | 35,000 | 325,000 | Horizontal | 293 | 247 | Fig 2 |
| KJSL 5001 | 5000 | 2360 | 1.7 | 35,000 | 325,000 | Horizontal | 253 | 114 | Fig 3 |
Remark : Lamps with various specification according to the customers order are available.
